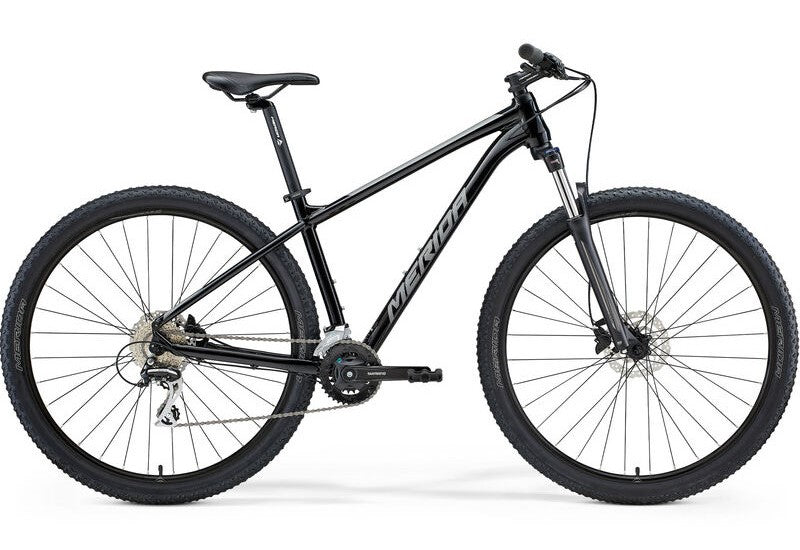

Merida Big Nine 20 Black

Aluminium hardtail, sporting fast-rolling 29er wheels, our more comfort-focused geometry, 100 mm of front suspension and a double chainset setup, giving you plenty of gears to choose from and lots of comfort and control during your next adventure.

• Frame
  TFS - 6061 series aluminium tubing, double butted and technoformed. Tapered head tube. Inboard chain stay mounted  disc brake. Internal cable routing and mounts for mudguards and kick stands.
• Fork
  Suntour XCT30 HLO; Coil; 100mm travel; lockout
• Headset
  Merida M2345
• Stem
  Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
• Handlebar
  Merida CC; aluminium; 690mm wide; 15mm rise
• Grip
  Merida EC
• Brake Type
  Hydraulic disc
• Brake Lever
  Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
• Brake Calipers
  Front: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor Rear: Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
• Tyres
  Front: Merida K1080; 29 x 2.2; wire bead Rear: Merida K1080; 29 x 2.2; wire bead
• Wheel Size
  29
• Wheels
  Rims: Merida CC; 17mm inner rim width; Material: aluminium Spokes: Black steel Front Hub: Shimano TX505; 100x9mm; 32 spokes; Centerlock Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Centerlock
• Speeds
  16
• Front Derailleur
  Shimano FD-M315-TS
• Rear Derailleur
  Shimano RD-M360
• Shift Levers
  Shimano ST-EF505
• Chain
  Sunrace M84
• Cassette
  Sunrace CSM668; 11-32 teeth; 8 speed
• Chainset
  Shimano FC-M315-2; 36-22 chainwheel with 170mm - S, 175mm - M/XXL length crank
• Bottom Bracket
  FSA TH-7420ST-W, Cartridge Bearing
• Pedals
  VP Components, VPE-891
• Saddle
  Merida Sport comfort
• Seat Post
  Merida CC; aluminium; 30.9mm diameter; 15mm lay back
