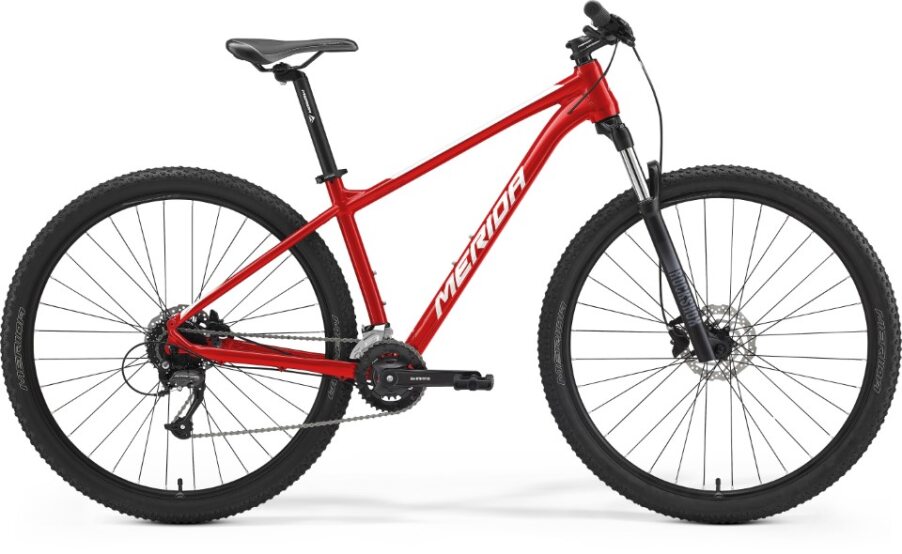

Merida Big Nine 60 Red/White
Merida Big Nine 60 Red/White
Couldn't load pickup availability
Please note UK delivery is available for some items only. Delivery options will be available at checkout. Items listed on the website are not guaranteed to be in stock, to confirm stock levels please call us on 02871338128
29er hardtail with sophisticated TFS aluminium frame, 2 x 9 drivetrain, RockShox Judy fork and complete Shimano drivetrain, Shimano hubs, and hydraulic disc brakes.
FORK
Rock Shox Judy TK; Coil; 100mm suspension travel Lockout; 46mm fork offset
WHEEL SIZE
29"
RIMS
Merida CC; 17mm inner width; Material: aluminium
SPOKES
Black steel
FRONT HUB
Shimano TX505; 100x9mm; 32 spokes; Centerlock
REAR HUB
Shimano TX505; 135x9mm; 32 spokes; Centerlock
FRONT TYRE
Merida K1080; 29" x 2.2"; wire bead
REAR TYRE
Merida K1080; 29" x 2.2"; wire bead
GEARS
18
SHIFTERS
Shimano ST-EF505
FRONT DERAILLEUR
Shimano FD-M2020-TS
REAR DERAILLEUR
Shimano RD-M370
CHAINSET
Shimano MT101-2; 36-22 teeth chainwheel with 170mm - S, 175mm - M/XXL length crank
CASSETTE
Shimano CS-HG200; 11-32 teeth; 9 speed
BOTTOM BRACKET
Shimano BB-UN100 (or FSA TH-7420ST if Shimano supply is delayed)
CHAIN
KMC M99
PEDAL
VP Components, VPE-891
BRAKE LEVER
Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
FRONT BRAKE
Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE
Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
GRIP
Merida EC
HANDLEBAR
Merida CC; aluminium; 690mm width; 15mm rise
STEM
Merida CC; aluminium; 31.8mm diameter; 6 degree stem angle - Length : 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEAD SET
Merida M2345
SADDLE
Merida Sport comfort
SEAT POST
Merida CC; aluminium; 30.9mm diameter; 15mm setback
