Claudy Cycles

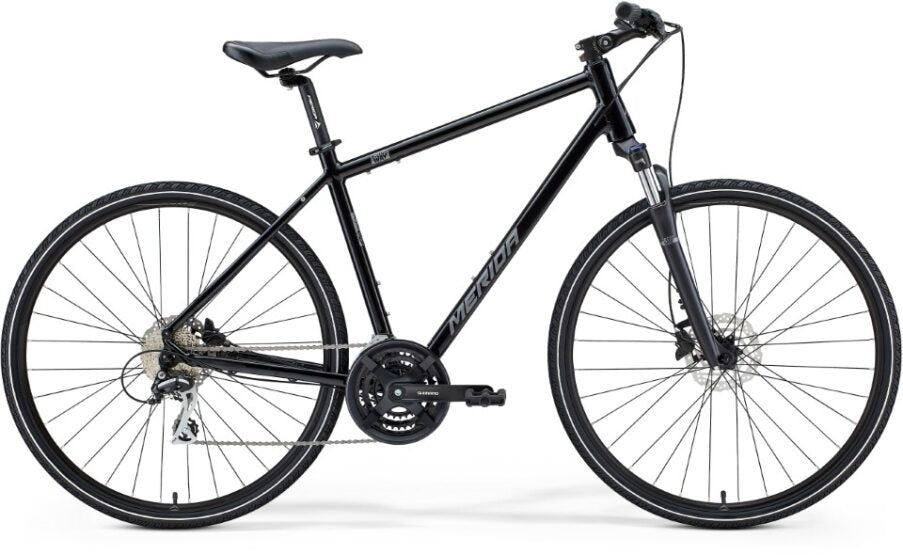

Merida Crossway 20 Black

Merida Crossway 20 Black

Regular price £699.00 GBP
Regular price Sale price £699.00 GBP
Sale Sold out
Tax included.

Please note UK delivery is available for some items only. Delivery options will be available at checkout. Items listed on the website are not guaranteed to be in stock, to confirm stock levels please call us on 02871338128

Hydraulic disc brake and suspension fork equipped trekking/hybrid bike at an attractive price. Your reliable disc brake-equipped companion around town and cross country.

The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort-focused equipment such as a suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-around functionality.

To go fast, you need to be able to slow down. Our CROSSWAY 20D comes equipped with powerful and low-maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather. This bike feels at home on the daily commute in the urban jungle as much on the weekend jaunt around the lanes and offers reliable performance at an attractive price. In combination with the powerful disc brakes, the suspension fork offers additional riding comfort and control.


Merida Crossway 20D 2023 Key Features:
  • Lightweight aluminium frame with comfort geometry
  • Lockable suspension fork
  • Hydraulic disc brakes
  • Shimano drivetrain
  • Multiple fixing points for rear rack and fenders
  • Suspension seat post and adjustable stem
  • Frame: TFS II - 6061 double butted techno formed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max. tyre size 700 x 50c
  • Fork: Suntour NEX HLO; Coil; 63mm travel; Lockout. Max. tyre size: 700 x 50c
  • Headset: Merida M2340
  • Stem: Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm
  • Handlebar: Merida CC; aluminium; 660mm wide; 25mm rise
  • Tape/Grip: Merida EC
  • Brake Lever: Shimano ST-EF505
  • Front Brakes: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor
  • Rear Brakes: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 160 mm rotor
  • Front Derailleur: Shimano FD-TY710
  • Rear Derailleur: Shimano RD-M359
  • Shifters: Shimano ST-EF505
  • Chain: Sunrace M84
  • Crankset: Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm
  • Cassette: Sunrace CSM668 11-32 teeth 8 speed
  • Bottom Bracket: FSA TH-7420ST-W, Cartridge Bearing
  • Rims: Merida CC; 17mm inner rim width; aluminium
  • Spokes: Black steel
  • Front Hub: Shimano TX505; 100x9mm wide; 32 spoke holes; Center lock
  • Rear Hub: Shimano TX505; 135x9mm wide; 32 spokes; Center lock
  • Front Tyre: Merida K1171; 700x40C; wire bead
  • Rear Tyre: Merida K1171; 700x40C; wire bead
  • Pedals: VP Components, VPE-891
  • Saddle: Merida Cross Sport
  • Seatpost: Merida TK; 30.9mm diameter; 13mm setback; 40mm seatpost suspension travel
