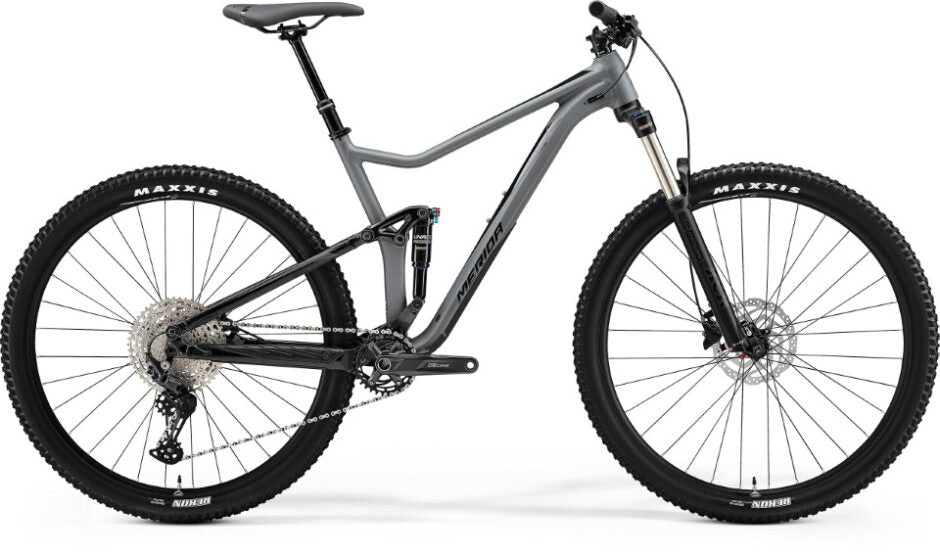

Merida One-Twenty 400

Merida One-Twenty 400

Regular price £1,899.00 GBP
Regular price Sale price £1,899.00 GBP
Sale Sold out
Tax included.

To reserve or to check the current stock level of this item please call us on 02871338128

Merida's most versatile full suspension bike, as with all of the range, the One-Twenty is over forked running 130mm forks with plush 120mm rear travel.

Key features:

  • 6066 triple butted hydroformed aluminium smooth welding frame
  • Suntour XCR34 fork with 130mm if bump soaking travel
  • Suntour Unair shock takes care of the 120mm of rear travel
  • Shimano 1x11 gears give enough range to climb anything
  • Tektro brakes offer all weather stopping power
  • Sizes: S (16") , M (17.5") , L (19") , XL (20.5")
  • Colours: Grey/Black
  • The Merida One-Twenty 400 is available with 0% APR Finance.

The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that’s easy to maintain. The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear.

The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning. All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt. While very much a trail bike at heart, the modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks.


FRAME Lite – 6066 triple butted, hydroformed aluminium, smooth welding.  tapered head tube, boost axle standard. internal cable routing, smart entry cable clamping. bb92 bb standard, max. tyre size 29" x 2.35"
FORK Suntour xcr34 lor; air; 130mm travel; tapered; lockout; 51mm fork offset. max. tyre size: 29" x 2.4"
REAR SHOCK Suntour unair tr lor8; lockout
HEADSET Fsa no.47/50
STEM Merida comp cc; aluminium; 31.8mm diameter; -6 degree rise - stem length: 60mm (all sizes)
BARS Merida expert cc; aluminium; 740mm wide; 10mm rise
FRONT BRAKE Tektro hd-m275; 2 piston hydraulic disc brake caliper with shimano rt10; 180mm rotor
REAR BRAKE Tektro hd-m275; 2 piston hydraulic disc brake caliper with shimano rt10; 180 mm rotor
BRAKE LEVER Tektro hd-m275
REAR MECH Shimano deore m5100 shadow+
SHIFTERS Shimano deore m5100 and shimano sl-mt500-il dropper post lever
RIMS Merida comp cc; 20mm inner rim width; aluminium
FRONT HUB Shimano mt400-b; 110x15mm; 32 spokes; center lock
REAR HUB Shimano mt400-b; 148x12mm; 32 spokes; center lock; including removable lever with 4/6mm allen key
SPOKES Black stainless
FRONT TYRE Maxxis rekon; 29" x 2.4"; wire bead
REAR TYRE Maxxis rekon; 29" x 2.4"; wire bead
SEAT POST Merida comp tr; 30.9mm diameter; in-line; drop: 100mm (s), 125mm (m), 150mm (l/xl)
SADDLE Merida comp sl; v-mount
CHAINSET Shimano deore m5100; 32 tooth chainset. crank length: 170mm (s), 175mm (m,l,xl)
BOTTOM BRACKET Shimano mt500-pa pressfit
CHAIN Kmc x11
PEDALS Resin platform
