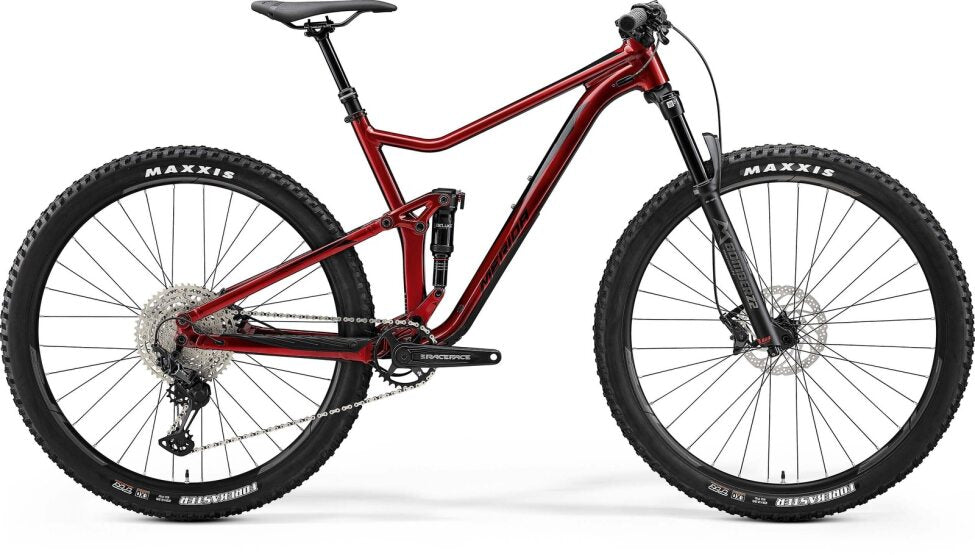

Merida One Twenty 600
Merida One Twenty 600
Couldn't load pickup availability
!IMPORTANT! Please contact us on 02871338128 or on our Facebook before placing an order as not all items in our website are guaranteed to be in stock at this time.
Merida's most versatile full suspension bike, as with all of the range, the One-Twenty is over forked running 130mm forks with plush 120mm rear travel.
The designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low stand over height and short chain stays that's easy to maintain.
The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear. The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning.
All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt.
While very much a trail bike at heart, the modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks.
BOTTOM BRACKET | Race Face BB BB92 24mm |
BRAKE LEVERS | Shimano M6100 |
CASSETTE | KMC X12 |
CHAIN | KMC X12 |
CHAINSET | Race Face Ride; 32 tooth chainset. Crank length: 175mm M,L |
FORK | Marzocchi Z2; Air; 130mm travel; Tapered; 44mm fork offset. Max. tyre size: 29inch x 2.6inch |
FRAME | Lite 6066 triple butted, hydroformed aluminium, smooth welding. Tapered head tube, Boost axle standard. Internal cable routing, Smart Entry cable clamping. BB92 BB standard, Max. tyre size 29inch x 2.35inch |
FRONT BRAKE | Shimano M6100; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
GRIPS | Merida Comp EC |
HANDLEBAR | Merida Expert TR; aluminium; 760mm wide; 20mm rise |
HEADSET | FSA NO.47/50 |
HUB FRONT | Shimano MT400-B; 110x15mm; 32 spokes; Center lock |
HUB REAR | Shimano MT410-B; 148x12mm; 32 spokes; Center lock; including removable lever with 4/6mm Allen key |
REAR BRAKE | Shimano M6100; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
REAR DERAILLEUR | Shimano XT RDM8100 Shadow+ 12 |
REAR SHOCK | RockShox Deluxe Select+; lockout |
RIMS | Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready tubeless tape and valves not included |
SADDLE | Merida Comp SL; V-mount |
SEATPOST | Merida Comp TR; 30.9mm diameter; in-line; Drop: 100mm S, 125mm M, 150mm L/XL |
SHIFT LEVERS | Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever |
SPOKES | Double Butted Black stainless |
STEM | Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm all sizes |
TYRES | Front tyre: Maxxis Forekaster; 29inch x 2.35inch; Kevlar bead; folding; TR EXO Dual Rear tyre: Maxxis Forekaster; 29inch x 2.35inch; Kevlar bead; folding; TR EXO Dual |
